Localization and segmentation of atomic columns in supported nanoparticles for fast scanning transmission electron microscopy

Climate
Localization and segmentation of atomic columns in supported nanoparticles for fast scanning transmission electron microscopy

Authors: Henrik Eliasson, Rolf Erni

Journal: npj Computational Materials

DOI: https://doi.org/10.1038/s41524-024-01360-0

Abstract

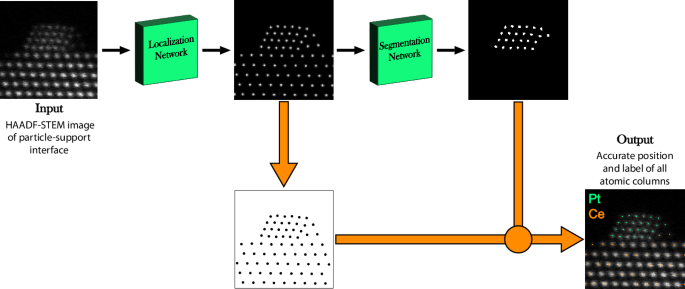

To accurately capture the dynamic behavior of small nanoparticles in scanning transmission electron microscopy, high-quality data and advanced data processing is needed. The fast scan rate required to observe structural dynamics inherently leads to very noisy data where machine learning tools are essential for unbiased analysis. In this study, we develop a workflow based on two U-Net architectures to automatically localize and classify atomic columns at particle-support interfaces. The model is trained on non-physical image simulations, achieves sub-pixel localization precision, high classification accuracy, and generalizes well to experimental data. We test our model on both in situ and ex situ experimental time series recorded at 5 frames per second of small Pt nanoparticles supported on CeO2(111). The processed movies show sub-second dynamics of the nanoparticles and reveal site-specific movement patterns of individual atomic columns.
, , , ,

Related Publications

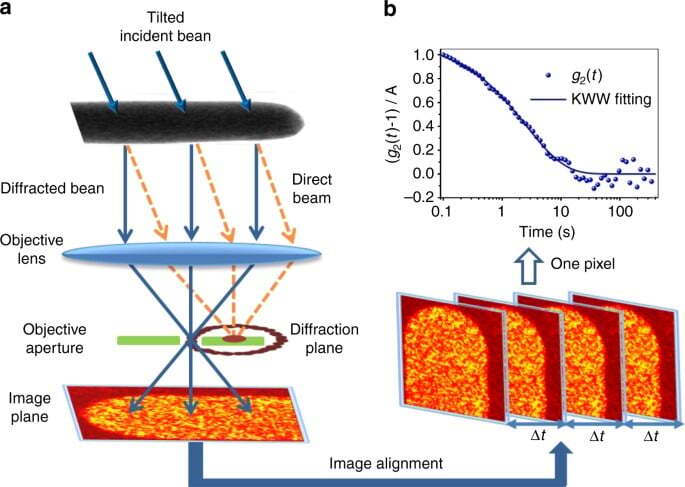

Spatially Heterogeneous Dynamics in a Metallic Glass Forming Liquid Imaged by Electron Correlation Microscopy.
